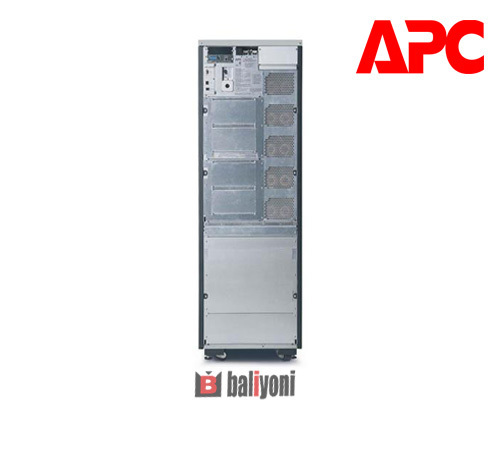

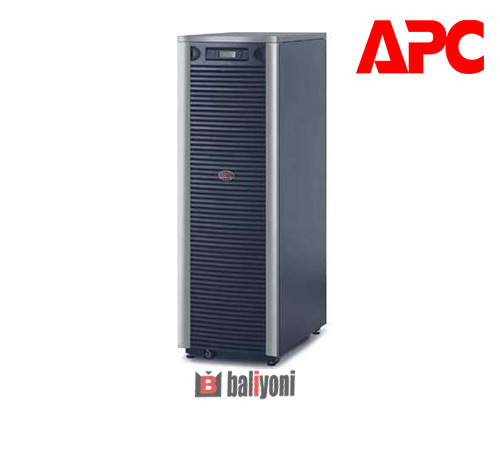

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower
*Harga dapat berubah sewaktu-sewaktu, hubungi (0361) 257 055 untuk informasi lebih lanjut
- +
Beli Sekarang
Rp 188.812.000
SYA16K16I
Call
308.0 Kg
311.0 Kg
Ultrabook, Celeron, Celeron Inside, Core Inside, Intel, Intel Logo, Intel Atom, Intel Atom Inside, Intel Core, Intel Inside, Intel Inside Logo, Intel vPro, Itanium, Itanium Inside, Pentium, Pentium Inside, vPro Inside, Xeon, Xeon Phi, Xeon Inside, and Intel Optane are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
Overview

SymmetraFeatures & Benefits

Manageability
  • SmartSlot
    Customize UPS capabilities with management cards.
  • Network manageable
    Provides remote power management of the UPS over the network.
  • Manageable external batteries
    Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • LCD display
    Alpha-Numeric Display which displays system parameters and alarms.
  • InfraStruXure Manager Compatible
    Enables centralized management via the APC InfraStruXure Manager.
Scalability
  • Plug-and-Play external batteries
    Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
  • Scalable runtime
    Allows additional run time to be quickly added as needed.
  • Programmable frequency
    Ensures compatibility with different input frequencies.
  • Field-replaceable power distribution panel
    Ensures compatibility with equipment that has different plug types.
  • Scalable power capacity
    Reduces UPS over-sizing costs today by allowing quick power upgrades, within the same footprint, later.
Protection
  • Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
  • Power conditioning
    Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Frequency and voltage regulation
    Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
  • Generator compatible
    Ensures clean, uninterrupted power to the loads in the event of an extended power outage
  • Input power factor correction
    Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Resettable circuit breakers
    Enables a quick recovery from overload events.
  • Cold-start capable
    Provides temporary battery power when the utility power is out.
Spesifikasi

Output

  • Output power capacity
    11.2 KWatts / 16.0 kVA
  • Max Configurable Power (Watts)
    11.2 KWatts / 16.0 kVA
  • Nominal Output Voltage
    230V
  • Output Voltage Note
    Configurable for 220 : 230 or 240 nominal output voltage
  • Output Voltage Distortion
    Less than 5% at full load
  • Output Frequency (sync to mains)
    47 - 63 Hz
  • Output Frequency (not synced)
    60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
  • Other Output Voltages
    220, 240
  • Load Crest Factor
    up to 5 : 1
  • Topology
    Double Conversion Online
  • Waveform type
    Sine wave
  • Maximum Output Current
    73
  • Output Connections
    (1) Hard Wire 3-wire (H N + G) (Battery Backup)
  • Bypass
    Internal Bypass (Automatic and Manual)

Input

  • Nominal Input Voltage
    230V , 400V 3PH
  • Input frequency
    45 - 65 Hz (auto sensing)
  • Input Connections
    Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
  • Input voltage range for main operations
    155 - 276, 290 - 480 (3:1)V
  • Input Total Harmonic Distortion
    Less than 7% for full load
  • Other Input Voltages
    220V, 240V, 380V, 415V
  • Input Power Factor at Full Load
    0.98

Batteries & Runtime
