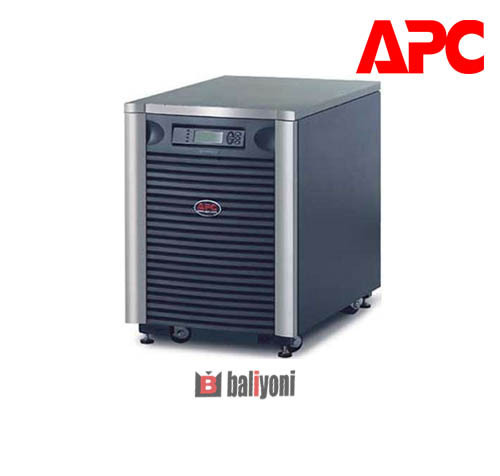

APC Symmetra LX 4kVA Scalable to 8kVA N+1
*Harga dapat berubah sewaktu-sewaktu, hubungi (0361) 257 055 untuk informasi lebih lanjut
- +
Beli Sekarang
Rp 9.988.300
SYA4K8I
Call
157.7 Kg
160.7 Kg
Ultrabook, Celeron, Celeron Inside, Core Inside, Intel, Intel Logo, Intel Atom, Intel Atom Inside, Intel Core, Intel Inside, Intel Inside Logo, Intel vPro, Itanium, Itanium Inside, Pentium, Pentium Inside, vPro Inside, Xeon, Xeon Phi, Xeon Inside, and Intel Optane are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
Overview
Serviceability
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • User-replaceable power modules
    Enables simple upgrades and replacements of the Power Modules.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Predictive failure notification
    Provides early-warning fault analysis ensuring proactive component replacement.
  • User-replaceable intelligence modules
    Enables simple upgrades and replacements of the Intelligence Modules.
  • Audible alarms
    Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
Scalability
  • Programmable frequency
    Ensures compatibility with different input frequencies.
  • Field-replaceable power distribution panel
    Ensures compatibility with equipment that has different plug types.
  • Plug-and-Play external batteries
    Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
  • Scalable runtime
    Allows additional run time to be quickly added as needed.
  • Scalable power capacity
    Reduces UPS over-sizing costs today by allowing quick power upgrades, within the same footprint, later.
Spesifikasi

Output

  • Output power capacity
    2.8 KWatts / 4.0 kVA
  • Max Configurable Power (Watts)
    5.6 KWatts / 8.0 kVA
  • Nominal Output Voltage
    230V
  • Output Voltage Note
    Configurable for 220 : 230 or 240 nominal output voltage
  • Output Voltage Distortion
    Less than 5% at full load
  • Output Frequency (sync to mains)
    47 - 63 Hz
  • Output Frequency (not synced)
    60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
  • Other Output Voltages
    220, 240
  • Load Crest Factor
    up to 5 : 1
  • Topology
    Double Conversion Online
  • Waveform type
    Sine wave
  • Maximum Output Current
    18
  • Output Connections
    (1) Hard Wire 3-wire (H N + G) (Battery Backup)
  • Bypass
    Internal Bypass (Automatic and Manual)

Input

  • Nominal Input Voltage
    230V , 400V 3PH
  • Input frequency
    45 - 65 Hz (auto sensing)
  • Input Connections
    Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
  • Input voltage range for main operations
    155 - 276 (1:1), 290 - 480 (3:1)V
  • Input Total Harmonic Distortion
    Less than 7% for full load
  • Other Input Voltages
    220V, 240V, 380V, 415V
  • Input Power Factor at Full Load
    0.98

Batteries & Runtime
