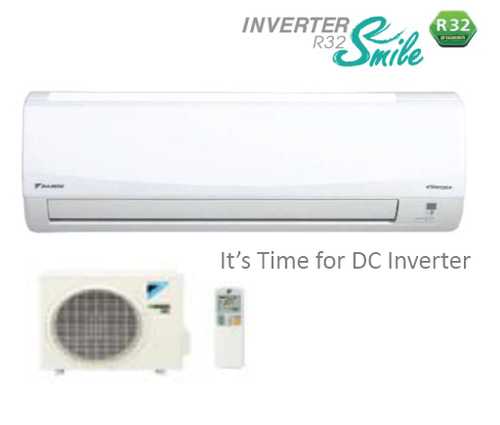

Ac Daikin 3/4 Pk Ftv-20axv14 (Freon R32, 580 Watt)
Model Name Indoor Unit FTV20AXV1
Outdoor Unit RV20AXV1
Capacity Btu/h 7
Power consumption W 580
COP W/W 3.53
Indoor Unit Power supply V/Ph/Hz 220-240/1/50
Air flow CFM 358/342/282/225/209
Sound pressure level dB(A) 39/37/32/26/23
Height mm 288
Width mm 800
Depth mm 206
Net weight kg 7.5
Outdoor Unit Sound Pressure Level dB(A) 46
Width mm 566
Depth mm 256
Net weight Kg 19.5
Piping connection - liquid mm 6.35
Piping connection - gas mm 9.52
Maximum pipe length m 15
Maximum elevation m 8
